The MegaTron XS makes continuous monitoring and control of industrial water systems such as cooling towers, boilers and waste water easy.
| Conductivity | pH / ORP |
| Make-up Conductivity | Temperature |
| Service Reports | Sensor and Alarm History |
| Flow | PPM Feed |
| 4-20mA Inputs and Outputs | Feed Timers |
| Up to 8 Digital Inputs | Up to 5 Control Relays |

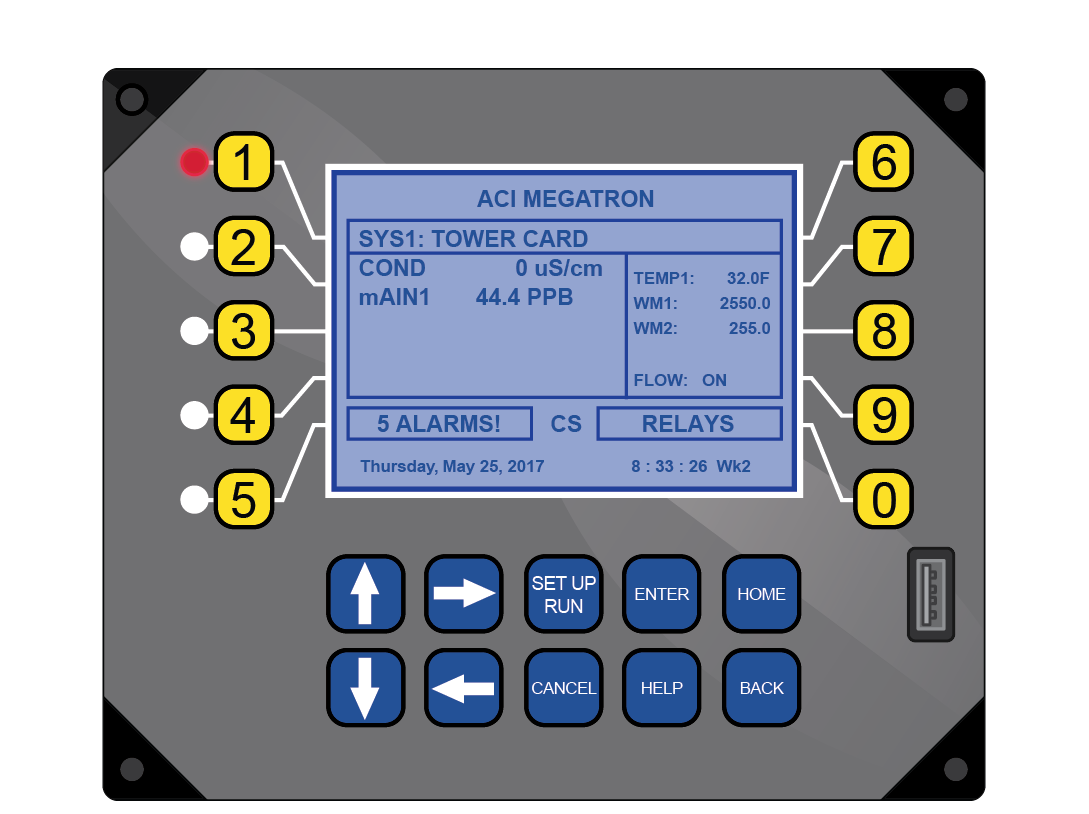

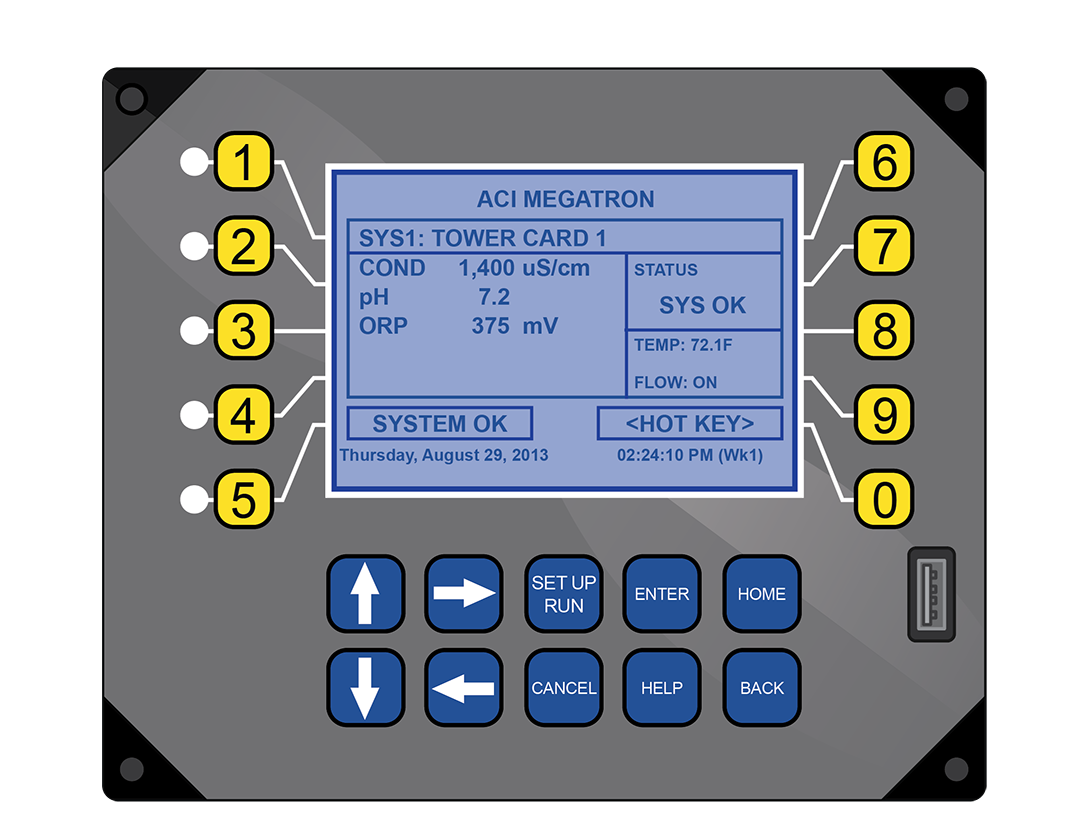

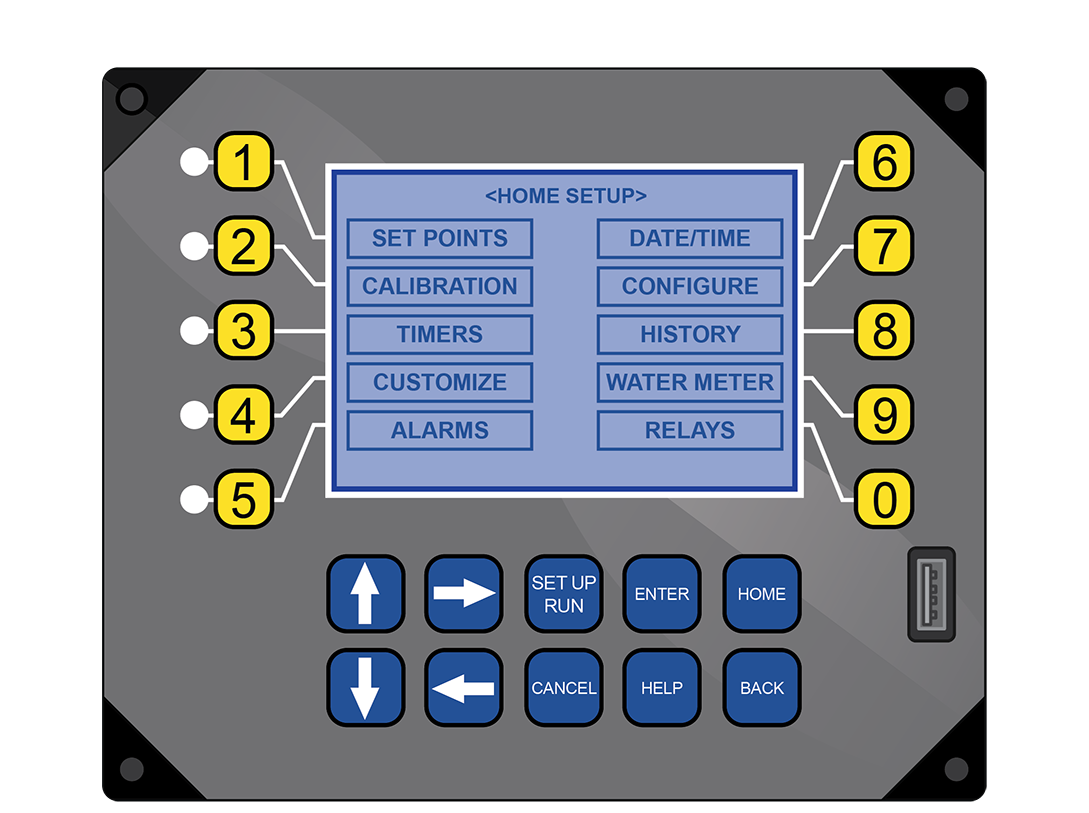

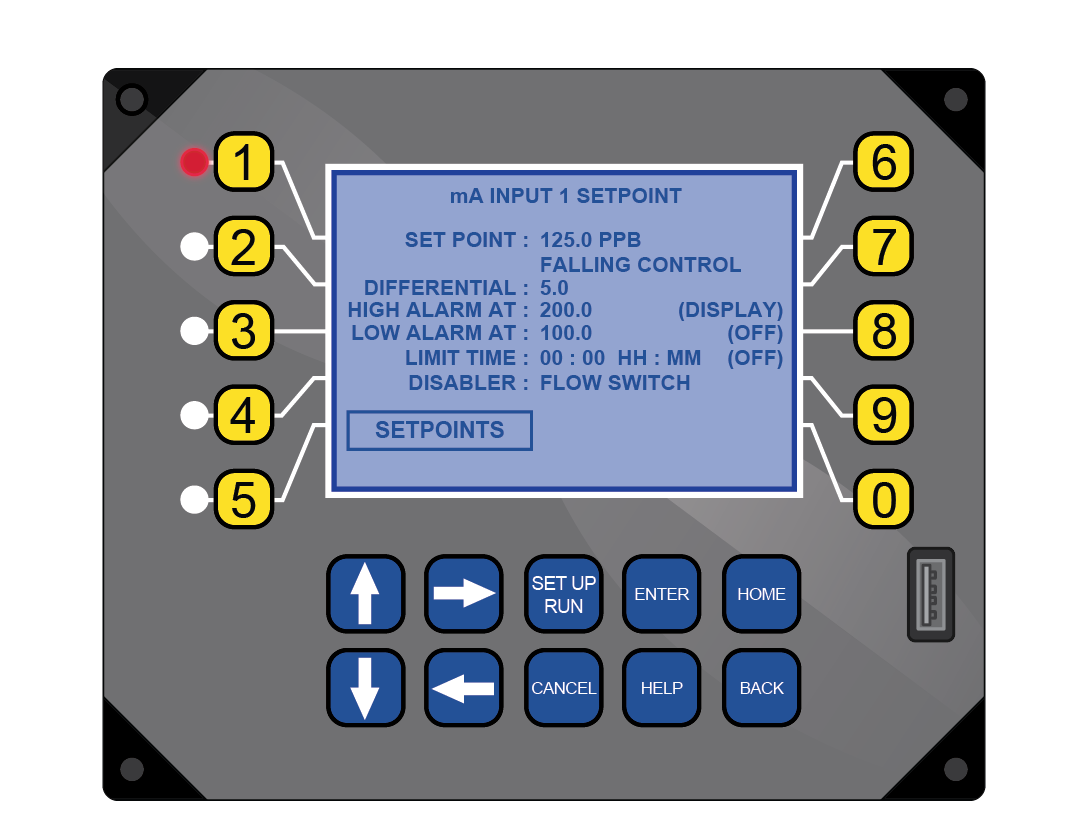

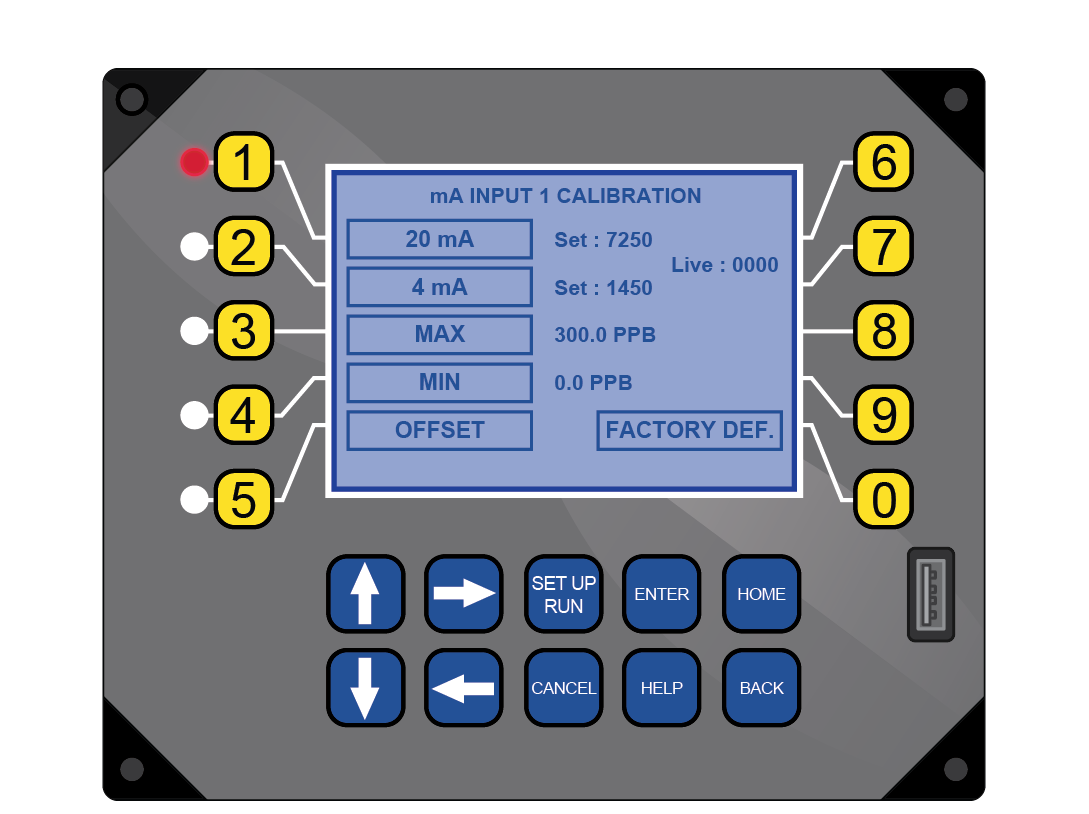

The MegaTron XS water treatment controller makes continuous monitoring and control of industrial water systems such as cooling towers, boilers and waste water easy with a user friendly ATM style menu and a large 16 line full graphic display that allows complete programming from the keypad. Using a simple system approach an individual MegaTron XS can be specifically configured with the functions your application requires.
MegaTron XS units have all the features and functions of the larger MT unit in a smaller enclosure with:
|  |
| MegaTron XS | MegaTron XT |
| (1) system or (2) boilers | (1) system or (2) boilers |
| ATM style menu | Touch screen display |
| (5) control relays | (5) control relays |
| Conductivity / pH / ORP | Conductivity / pH / ORP |
| Makeup conductivity | Makeup conductivity |
| Temperature | Temperature |
| Feed & flow control / monitoring | Feed & flow control / monitoring |
| (2) water meter inputs | (8) water meter inputs |
| (8) 4-20 mA input signals | (8) 4-20 mA input signals |
| (4) 4-20 mA output signals | (8) 4-20 mA output signals |
| BACnet / MODBUS options | BACnet / MODBUS options |
| Smaller form factor | Larger, easy access cabinet |
